BW9821
1-Port eUSB2 Repeater

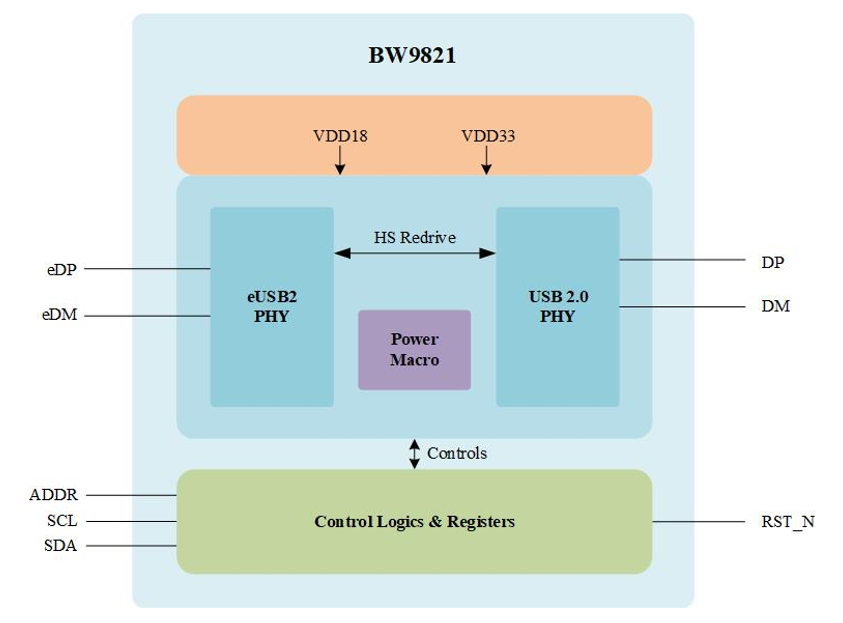

The BW9821 is a 1-port eUSB2 repeater which translates between eUSB2 and USB 2.0 signaling, and it is dual-role capable supporting both host mode and device mode. The BW9821 supports High-Speed (HS), Full-Speed (FS) and Low-Speed (LS) operation, and consumes ultra-low power in L1/L2 states. It also supports auto-resume for better interoperability in case the host controller is not capable to initiate Resume in time. The BW9821 provides various registers for function configuration and fine-tuning for USB 2.0 and eUSB2 PHY via RAP (Register Access Protocol) or I2C interface. The BW9821 is powered by 1.8V and 3.3V, and does not require specific power-on sequence.
All available packages for BW9821 are listed in the following table.
All available packages for BW9821 are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
BW9821
|
QFN 12
|
-
Compliant with USB 2.0 and eUSB2 (rev 1.2) spec
-
Support High-Speed (HS), Full-Speed (FS) and Low-Speed (LS) operation
-
Support LPM L1 (Sleep) and L2 (Suspend)
-
Support 1.2V FS/LS signaling of eUSB2 interface
-
Support host and device mode (dual-role repeater)
-
Support auto-resume in host mode
-
Support register access protocol (RAP)
-
Accept RAP at any time, not only in Default state
-
-
-
Compliant with “USB 2.0 DC Resistance” ECN with programmable squelch and disconnect threshold
-
Compliant with “USB 2.0 eUSB2 repeater effects” ECN (ver. 20240820)
-
Compliant with Battery Charging (rev 1.2) spec
-
Support CDP and DCP advertising
-
Support SDP, CDP and DCP detection
-
-
Programmable TX swing and RX equalization for both USB2.0 and eUSB2 interfaces
-
I2C Interface
-
Support 3.3V, 1.8V interface
-
Support Standard-mode, Fast-mode, and Fast-mode Plus
-
Support byte and burst read/write
-
4-level ADDR pin
-
-
USB 2.0 DP/DM pins are 5V tolerance
-
Supply 3.3V (VDD33) and 1.8V (VDD18) power
-
Not require the power sequence
-
Power on flow done and enter eUSB2 Default state within 4ms after power supplies are valid
-
