GL9950VE-1T
Dual-Port USB 3.2 10 Gbps Redriver
Genesys GL9950VE-1T is a low-power 2-port 10 Gbps linear redriver. It is compliant with the USB 3.1 specification. GL9950VE-1T provides adjustable equalizer, DC gain controller to compensate for the channel loss, and extends the length and enables the systems to pass USB compliance. The device optimizes performance when USB signals travel across PCB and cables, signal integrity degrades due to loss and inter-symbol interference.
GL9950VE-1T offers single supply voltage 3.3V with ultra-low power consumption. Each channel operates independently. The advanced power management of GL9950VE-1T can consume ultra-low power when the channel is idle for a longer time.
All available packages for GL9950VE-1T are listed in the following table.
GL9950VE-1T offers single supply voltage 3.3V with ultra-low power consumption. Each channel operates independently. The advanced power management of GL9950VE-1T can consume ultra-low power when the channel is idle for a longer time.
All available packages for GL9950VE-1T are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
BW9950VE-1T
|
QFN 34
|
- Compliant with USB 3.2 Gen1 / Gen2 Specification

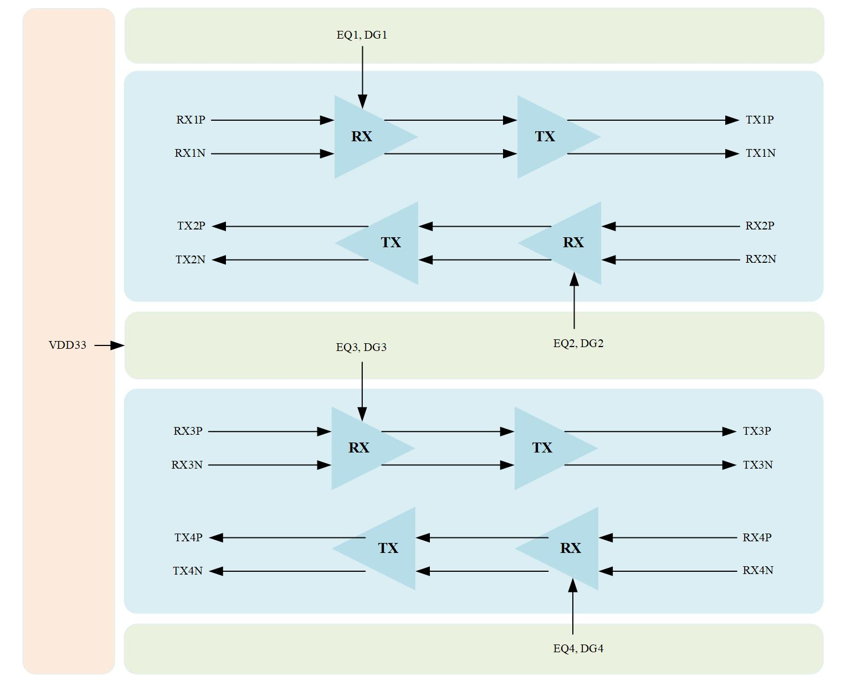

- Four 10 Gbps differential signal pairs
- 4-level selectable Equalization / DC gain
- Adjustable receiver equalization
- Adjustable DC gain
- Advanced power management mode (each port)
- Active mode: 310 mW
- Sleep mode: 1.98 mW
- Disconnect mode: 1.32 mW
- Single supply voltage: 3.3V
- Industrial Temperature: -40oC to 85oC
- Applications
- Desktop and notebook PC
- Cellular phones
- Tablet
- TVs
- Active cable
- Docking stations
