BW9915E
USB 3.2 Gen2x2 20Gbps Redriver

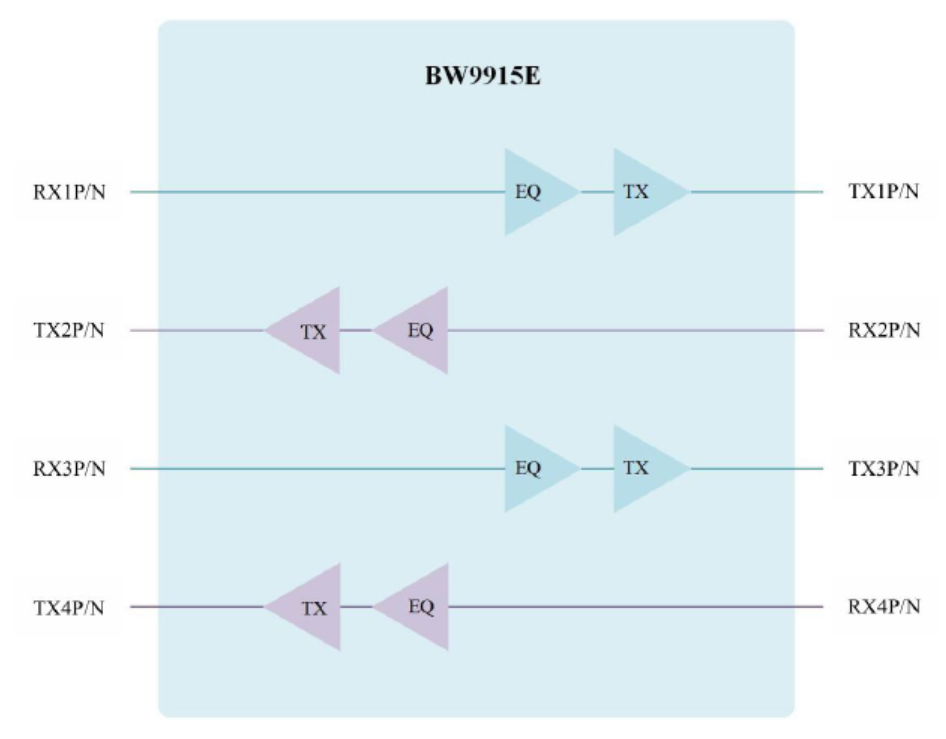

BW9915E is a low-power dual-lane 20 Gbps linear redriver. It is compliant with the USB 3.2 Gen2 and USB3.2 Gen2x2. BW9915E provides programmable equalizer, flat gain controller and maximum output swing controller to compensate for the channel loss, and extends the length and enables the systems to pass USB compliance. The device optimizes performance when the high speed signals travel across PCB and cables, signal integrity degrades due to loss and inter-symbol interference.
BW9915E offers single supply voltage 3.3V with ultra-low power consumption. Each channel operates independently. The advanced power management of BW9915E can consume ultra-low power when the channel is idle for a longer time.
All available packages for BW9915E are listed in the following table.
BW9915E offers single supply voltage 3.3V with ultra-low power consumption. Each channel operates independently. The advanced power management of BW9915E can consume ultra-low power when the channel is idle for a longer time.
All available packages for BW9915E are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
BW9915E
|
QFN 34
|
-
Compliant with USB 3.2 Gen1 / Gen 2 and USB3.2 Gen2x2 Specification
-
Dual-lane 20 Gbps differential signal pairs
-
9-level selectable equalization
-
4-level selectable flat gain and maximum output swing
-
Adjustable receiver equalization
-
Adjustable flat gain
-
I2C and PIN strap mode for performance tuning
-
Advanced power management mode
-
Active mode: < 700 mW
-
Sleep mode: < 3 mW
-
Disconnect Mode: < 1.6 mW
-
Shutdown mode: < 0.3 mW
-
-
Automatic power saving control
-
Automatic receiver detection
-
Single supply voltage: 3.3V
-
Applications
-
Desktop and notebook PC
-
Cellular phones
-
Tablet
-
TVs
-
Active cable
-
Docking stations
-
