BW9914E
USB Type-C 10Gbps Redriver with 4:4 MUX

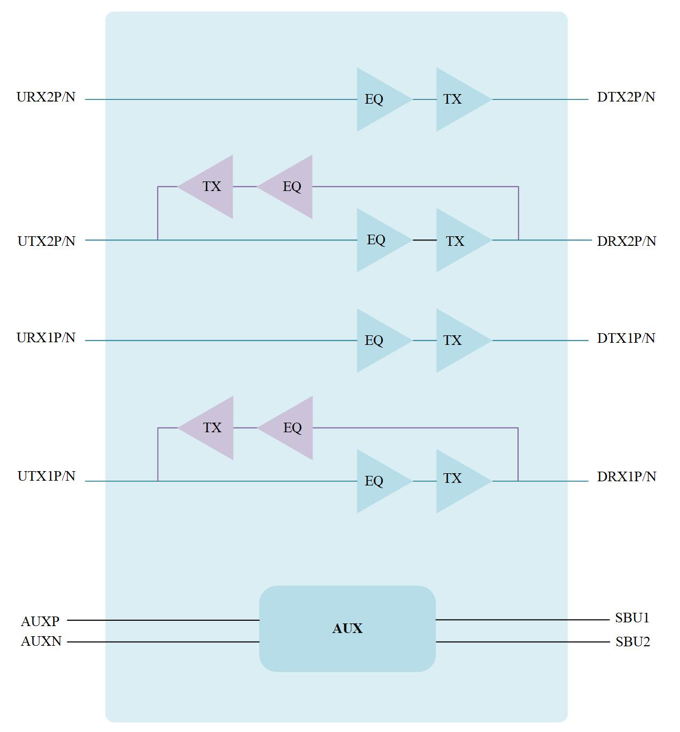

BW9914E is a low-power 4-channel 10 Gbps linear redriver. BW9914E also integrates a 4:4 MUX for USB Type-C applications. It is compliant with the USB 3.2 Gen 2 and DisplayPort 1.4 as Alternative Mode and UHBR10(DP2.1 10Gbps). BW9914E provides programmable equalizer, flat gain controller and maximum output swing controller to compensate for the channel loss, and extends the length and enables the systems to pass USB and DisplayPort compliance both. The device optimizes performance when the high speed signals travel across PCB and cables, signal integrity degrades due to loss and inter-symbol interference.
BW9914E offers single supply voltage 3.3V with ultra-low power consumption. Each channel operates independently. The advanced power management of BW9914E can consume ultra-low power when the channel is idle for a longer time.
All available packages for BW9914E are listed in the following table.
BW9914E offers single supply voltage 3.3V with ultra-low power consumption. Each channel operates independently. The advanced power management of BW9914E can consume ultra-low power when the channel is idle for a longer time.
All available packages for BW9914E are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
BW9914E
|
QFN 34
|
-
Compliant with USB 3.2 Gen1 / Gen2 Specification
-
Compliant with UHBR10 of DisplayPort 2.1 & DisplayPort v1.4a Specification
-
4-channel 10 Gbps differential signal pairs
-
Support DP Dual Mode
-
I2C mode for performance tuning
-
Advanced power management mode
-
Active mode: < 330 mW for USB Mode ; < 660 mW for DP Mode
-
Sleep mode: < 1.81 mW for USB Mode
-
Disconnect Mode: < 1.25 mW for USB Mode
-
Shutdown mode: < 0.18 mW
-
-
Automatic power saving control
-
Automatic receiver detection
-
Single supply voltage: 3.3V
-
Applications
-
Desktop and notebook PC
-
Cellular phones
-
Tablet
-
TVs
-
Active cable
-
Docking stations
-
