BW9900V
2-Channel USB 3.2 5Gbps Redriver

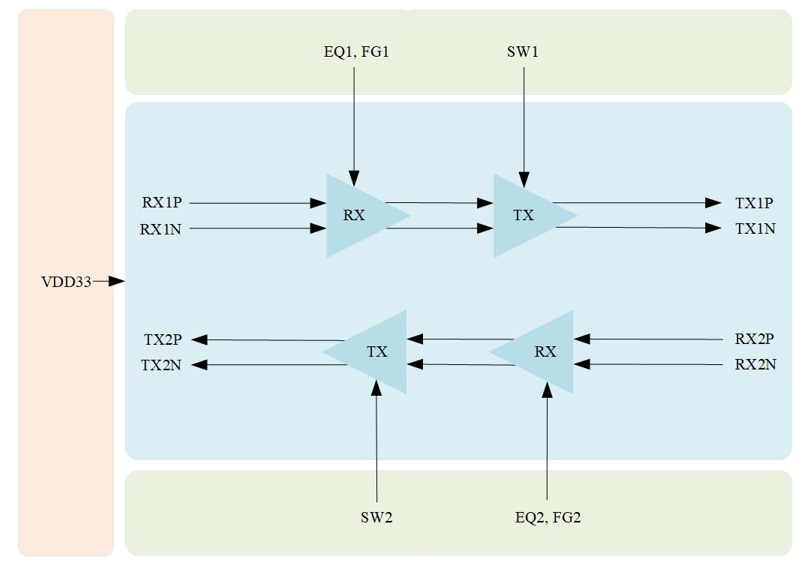

Genesys BW9900V is a low-power 2-channel 5 Gbps linear redriver. It is compliant with the USB 3.2 specification. BW9900V provides programmable equalizer, flat gain controller and output swing controller to compensate for the channel loss, and extends the length and enables the systems to pass USB compliance. The device optimizes performance when USB signals travel across PCB and cables, signal integrity degrades due to loss and inter-symbol interference.
BW9900V offers single supply voltage 3.3V with ultra-low power consumption. Each channel operates independently. The advanced power management of BW9900V can consume ultra-low power when the channel is idle for a longer time.
BW9900V offers single supply voltage 3.3V with ultra-low power consumption. Each channel operates independently. The advanced power management of BW9900V can consume ultra-low power when the channel is idle for a longer time.
All available packages for BW9900V are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
BW9900V
|
QFN 24
|
-
Compliant with USB 3.2 Gen 1 Specification
-
Two 5 Gbps differential signal pairs
-
4-level selectable Equalization / flat gain / maximum output swing
-
Adjustable maximum output voltage swing range: 900mV ~ 1200 mV
-
Adjustable receiver equalization
-
Adjustable flat gain
-
Advanced power management mode
-
Active mode: 300 mW
-
Sleep mode: < 1 mW
-
Disconnect mode: 0.6 mW
-
-
Single supply voltage: 3.3V
-
Applications
-
Desktop and notebook PC
-
Cellular phones
-
Tablet
-
TVs
-
Active cable
-
Docking stations
-
