GL3232SX
USB 3.2 Gen1 to SD 4.0 and DDR275 Low Power Single-LUN Memory Card Reader Controller
GL3232SX is an USB 3.2 GEN1 to SD 4.0 Single LUN Memory Card Reader Controller.
GL3232SX supports various types of SD memory cards such as Secure DigitalTM (SD), microSD and miniSD. GL3232SX supports high density memory cards such as SDXC(capacity up to 2TB) and SDUC(capacity up to 128TB). GL3232SX supports UHS-II speed mode, UHS-I speed mode and further supports up to DDR275 speed mode with UHS-I interface to enhance the performance of reading and writing.

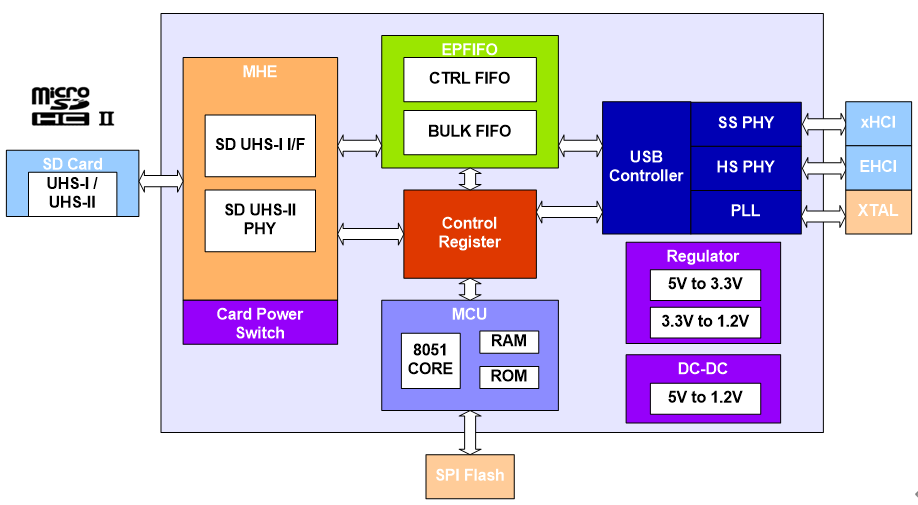

The GL3232SX integrates a high speed 8051 microprocessor and a high efficiency hardware engine for the best data transfer performance between USB and various memory card interfaces. It supports ISP (In System Programming) for firmware upgrade from the external SPI Flash via USB port. It integrates 5V to 3.3V and 3.3V to 1.2V regulators and power MOSFETs which can reduce system BOM cost. It also integrates 5V to 1.2V DC-DC as alternative to improve the power efficiency.
GL3232SX supports various types of SD memory cards such as Secure DigitalTM (SD), microSD and miniSD. GL3232SX supports high density memory cards such as SDXC(capacity up to 2TB) and SDUC(capacity up to 128TB). GL3232SX supports UHS-II speed mode, UHS-I speed mode and further supports up to DDR275 speed mode with UHS-I interface to enhance the performance of reading and writing.
The GL3232SX integrates a high speed 8051 microprocessor and a high efficiency hardware engine for the best data transfer performance between USB and various memory card interfaces. It supports ISP (In System Programming) for firmware upgrade from the external SPI Flash via USB port. It integrates 5V to 3.3V and 3.3V to 1.2V regulators and power MOSFETs which can reduce system BOM cost. It also integrates 5V to 1.2V DC-DC as alternative to improve the power efficiency.
-
USB specification compliance
-
Comply with Universal Serial Bus 3.2 Specification (USB 3.2 GEN1)
-
Comply with Universal Serial Bus Specification rev. 2.0 (USB 2.0)
-
Comply with USB Mass Storage Class Specification rev. 1.0
-
Support USB Mass Storage Class Bulk-Only Transport (BOT)
-
Support 1 device address and up to 3 endpoints: Control (0) / Bulk Data Read In (1) / Bulk Data Write Out (2)
-
Support 5 Gbps/SuperSpeed, 480 Mbps/high-speed, and 12 Mbps/full-speed transfer rates
-
-
Integrated USB building blocks
-
SuperSpeed USB/USB 2.0 transceiver macro (UTM), Serial Interface Engine (SIE), and embedded Power-On Reset (POR)
-
-
Embedded high speed 8051 micro-controller
-
High efficiency hardware DMA engine improves data transfer performance between USB and flash card interfaces
-
Support Secure DigitalTM v1.0 / v1.1 / v2.0/ SDHC / SDXC / SDUC (capacity up to 128TB)
-
Support Secure DigitalTM v3.0 UHS-I (Ultra High Speed): SDR12/SDR25/SDR50/DDR50/SDR104
-
Support Secure DigitalTM v4.0 UHS-II: Full Duplex Mode and Half Duplex Mode
-
Support up to DDR275 speed mode to enhance the UHS-I performance
-
Support ISP (In System Programming) for firmware upgrade from the external SPI Flash via USB port
-
Support 5V power input or 3.3V power input
-
On-Chip power MOSFETs for supplying flash media card power
-
On-chip 5V to 3.3V and 3.3V to 1.2V regulator
-
On-chip 5V to 1.2V DC-DC to improve power efficiency.
-
Support Over-current protection mechanism. Over-current flag is asserted when SD_V33 over 800mA ; Over-current flag is asserted when SD_V18 over 300mA
-
Support USB 2.0 LPM (Link Power Management)
-
Support USB 3.1 GEN1 LTM (Latency Tolerance Messaging)
-
Support USB 3.1 GEN1 U1/U2/U3 low power link state
-
Support Latency Tolerance Messaging
-
Support remote wakeup function
-
Support Windows Modern Standby
-
Support S0ix
-
Support Spread Spectrum Clock for SD to reduce EMI effect
-
Available in QFN48 pin package (6x6mm)
