GL3232S
USB 3.2 Gen1 to SD 4.0(DDR225) Single-LUN Low Power Memory Card Reader Controller
GL3232S is an USB 3.2 GEN1 to SD 4.0 Single LUN Memory Card Reader Controller.
GL3232S supports various types of SD memory cards, such as Secure DigitalTM (SD), SDHC, miniSD and microSD (T-Flash), MultiMediaCardTM (MMC), RS-MMC, MMCmicro and MMCmobile. It also supports high density memory cards (Capacity up to 128TB), such as SDXC and SDUC, ultra high speed memory cards, SD3.0 UHS-I and SD4.0 UHS-II card. GL3232 also supports SanDisk high-performance UHS-I SDXC up to 200MB/s of reading speed.

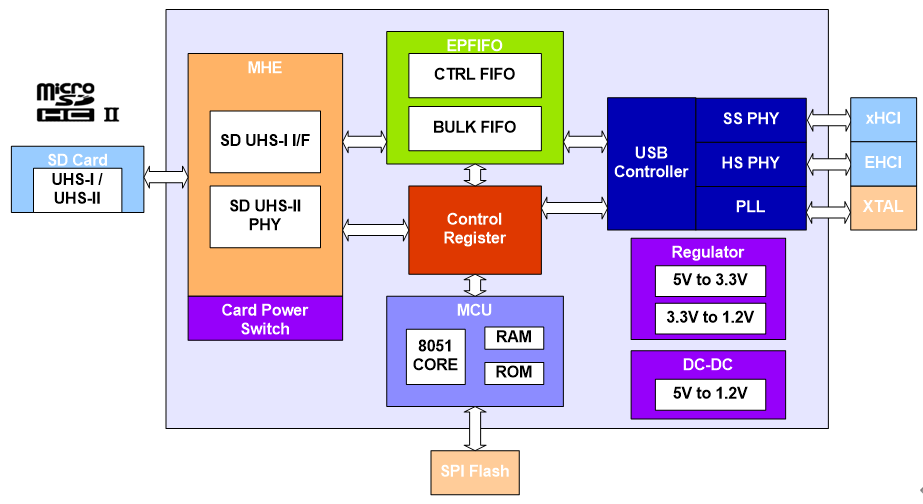

The GL3232S integrates a high speed 8051 microprocessor and a high efficiency hardware engine for the best data transfer performance between USB and various memory card interfaces. It supports ISP (In System Programming) for firmware upgrade from the external SPI Flash via USB port. It integrates 5V to 3.3V and 3.3V to 1.2V regulators and power MOSFETs which can reduce system BOM cost. It also integrates 5V to 1.2V DC-DC as alternative to improve the power efficiency.
GL3232S supports various types of SD memory cards, such as Secure DigitalTM (SD), SDHC, miniSD and microSD (T-Flash), MultiMediaCardTM (MMC), RS-MMC, MMCmicro and MMCmobile. It also supports high density memory cards (Capacity up to 128TB), such as SDXC and SDUC, ultra high speed memory cards, SD3.0 UHS-I and SD4.0 UHS-II card. GL3232 also supports SanDisk high-performance UHS-I SDXC up to 200MB/s of reading speed.
The GL3232S integrates a high speed 8051 microprocessor and a high efficiency hardware engine for the best data transfer performance between USB and various memory card interfaces. It supports ISP (In System Programming) for firmware upgrade from the external SPI Flash via USB port. It integrates 5V to 3.3V and 3.3V to 1.2V regulators and power MOSFETs which can reduce system BOM cost. It also integrates 5V to 1.2V DC-DC as alternative to improve the power efficiency.
-
USB specification compliance
-
Comply with Universal Serial Bus 3.2 Specification (USB 3.1 GEN1)
-
Comply with Universal Serial Bus Specification rev. 2.0 (USB 2.0)
-
Comply with USB Mass Storage Class Specification rev. 1.0
-
Support USB Mass Storage Class Bulk-Only Transport (BOT)
-
Support 1 device address and up to 3 endpoints: Control (0) / Bulk Data Read In (1) / Bulk Data Write Out (2)
-
Support 5 Gbps/SuperSpeed, 480 Mbps/high-speed, and 12 Mbps/full-speed transfer rates
-
-
Integrated USB building blocks
-
SuperSpeed USB/USB 2.0 transceiver macro (UTM), Serial Interface Engine (SIE), and embedded Power-On Reset (POR)
-
-
Embedded high speed 8051 micro-controller
-
High efficiency hardware DMA engine improves data transfer performance between USB and flash card interfaces
-
Support Secure DigitalTM v1.0 / v1.1 / v2.0/ SDHC / SDXC / SDUC (capacity up to 128TB)
-
Support Secure DigitalTM v3.0 UHS-I (Ultra High Speed): SDR12/SDR25/SDR50/DDR50/SDR104
-
Support Secure DigitalTM v4.0 UHS-II: Full Duplex Mode and Half Duplex Mode
-
Support DDR225 speed mode to enhance the UHS-I performance
-
Support SanDisk high-performance UHS-I SDXC up to 200MB/s of reading speed
-
Support HUAWEI Nano Memory Card
-
Support ISP (In System Programming) for firmware upgrade from the external SPI Flash via USB port
-
Support 5V power input or 3.3V power input
-
On-Chip power MOSFETs for supplying flash media card power
-
On-chip 5V to 3.3V and 3.3V to 1.2V regulator
-
On-chip 5V to 1.2V DC-DC to improve power efficiency.
-
Support Over-current protection mechanism. Over-current flag is asserted when SD_V33 over 800mA ; Over-current flag is asserted when SD_V18 over 300mA
-
Support USB 2.0 LPM (Link Power Management)
-
Support USB 3.1 GEN1 LTM (Latency Tolerance Messaging)
-
Support USB 3.1 GEN1 U1/U2/U3 low power link state
-
Support Latency Tolerance Messaging
-
Support remote wakeup function
-
Support Windows Modern Satndby
-
Support S0ix
-
Support Spread Spectrum Clock for SD to reduce EMI effect
-
Available in QFN48 pin package (6x6mm)
