GL3466

USB 3.2 Gen1 Stand-Alone Scanner Controller

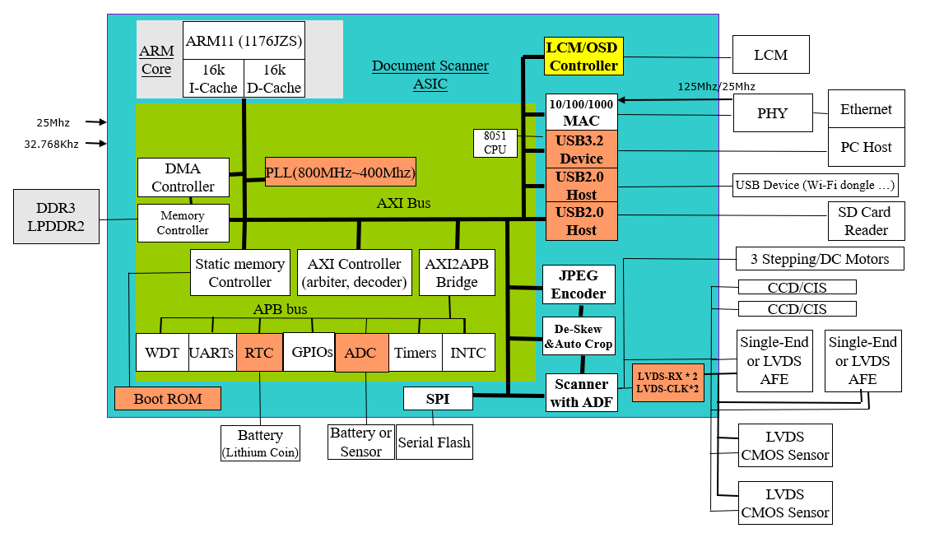

Genesys Logic’s single-chip GL3466 is a high speed, high performance, and rich scalability controller for standalone scanner. It is designed for bus-powered, portable or fast sheet-fed scanner controller. It successfully integrates ARM11 CPU, scanner function ASIC, JPEG encoder/decoder, USB 3.2 Gen1 device and USB 2.0 EHCI hosts controller into one single-chip. With its high performance design architecture, GL3466 is ready for supporting CIS or CCD image sensors (600~9600dpi resolution) that are used in ADF sheet-fed and DC motor scanner.
  • Compliance to USB Specification Revision2.0 and USB 3.2 Gen 1 Specification Revision1.0
  • Support 2 USB EHCI/UHCI host ports
  • Embedded ARM1176JZ-S CPU with 16KB I-cache/16KB D-cache and up to 375MHz
  • Support two 16-bit wide DDR3 and clock operation up to 375MHz
  • Support one 32-bit wide LDDR2 and clock operation up to 325MHz
  • 25MHz low frequency clock input for better EMI
  • Build-in two SSC(Spread Spectrum Clock) PLL
  • Embedded Real Time Clock
  • Support LCM Interface with 8bits MCU I/F and Vsync/Hsync/DE style
  • Support Two UART
  • Embedded JPEG Encoder and Decoder
  • Embedded a 4 channels 10-bit ADC with 1M samples rate
  • Support one, two, and four channel SPI Flash
  • Support two I2C
  • Support smart high-speed transmission control technology for multiple stepper and DC motors
  • Support new smart DC motor scanning technology
  • Support high-speed dual-scan control engine function
  • Support smart automatic image correction technology for embedded systems
  • -auto-deskew, auto-crop, auto-color/gray detection, C/R color registration and so on
  • Support innovative mechanical roller compensation technology
  • Support smart automatic brightness compensation technology
  • Support high-speed low-voltage differential signaling (LVDS) interface
  • Support a CIS image sensor that supports up to 6-channel
  • The maximum scanning speed of A4-sized documents can reach over 100 sheets or 200 pages per minute
  • The maximum scanning speed of banknote can reach over 400 sheets or 800 sides per minute
