GL9930N-1T
2-Channel PCIe Gen3/SATA3 Combo Redriver

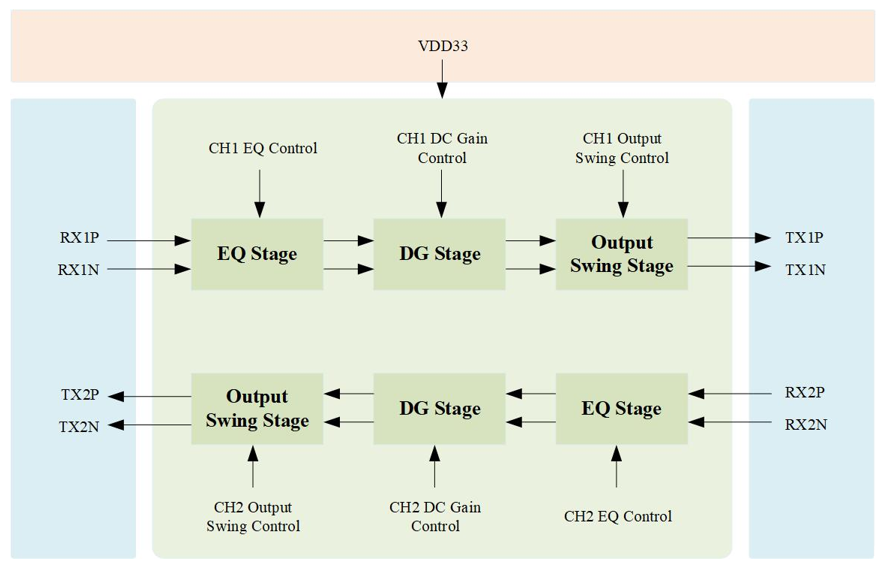

Genesys GL9930N-1T is a low-power 2-channel dual-protocol linear redriver, supporting PCIe Gen3 8Gbps and SATA 3.0 6Gbps. GL9930N-1T provides programmable equalizer, DC gain controller and output swing controller to compensate for the channel loss, and extends the length and enables the systems to pass PCIe/SATA compliance. The device optimizes performance when signals travel across PCB and cables, signal integrity degrades due to loss and inter-symbol interference.
GL9930N-1T offers single supply voltage 3.3V with ultra low power consumption. Each channel operates independently. The advanced power management of GL9930N-1T can consume ultra low power when the channel is idle for a longer time.
All available packages for GL9930N-1T are listed in the following table.
GL9930N-1T offers single supply voltage 3.3V with ultra low power consumption. Each channel operates independently. The advanced power management of GL9930N-1T can consume ultra low power when the channel is idle for a longer time.
All available packages for GL9930N-1T are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
GL9930N-1T
|
QFN 30
|
-
Supporting PCIe Gen3 and SATA 3.0 protocol
-
Two maximum 10 Gbps differential signal pairs
-
4-level selectable Equalization/DC gain/output swing
-
Adjustable output voltage swing range: 800mV ~ 1200 mV
-
Adjustable receiver equalization
-
Adjustable DC gain
-
Advanced power management mode
-
Active mode: 310 mW
-
Standby mode: 105 mW
-
Disconnect mode: < 0.66 mW
-
-
Single supply voltage: 3.3V
-
Industrial Temperature: -40oC to 85oC
-
Applications
-
Desktop and notebook PC
-
Cellular phones
-
Tablet
-
TVs
-
Active cable
-
Docking stations
-
GL9930N-1T
