GL3231ST
Industrial Level USB 3.2 Gen1 to SD 3.0 DDR200 Dual-LUN Low Power Memory Card Reader Controller
GL3231ST is an USB 3.2 Gen1 Dual-LUN card reader controller and targets for the application which require operating temperature from -40°C to 85°C. GL3231ST provides 2 LUNs (Logic Unit Number) which can support various types of memory cards, such as Secure DigitalTM (SD), microSD and miniSD. GL3231ST supports high density memory cards such as SDXC(capacity up to 2TB) and SDUC(capacity up to 128TB). GL3231ST supports UHS-II speed mode, UHS-I speed mode and further supports the DDR200 speed mode with UHS-I interface to enhance the performance of reading and writing.

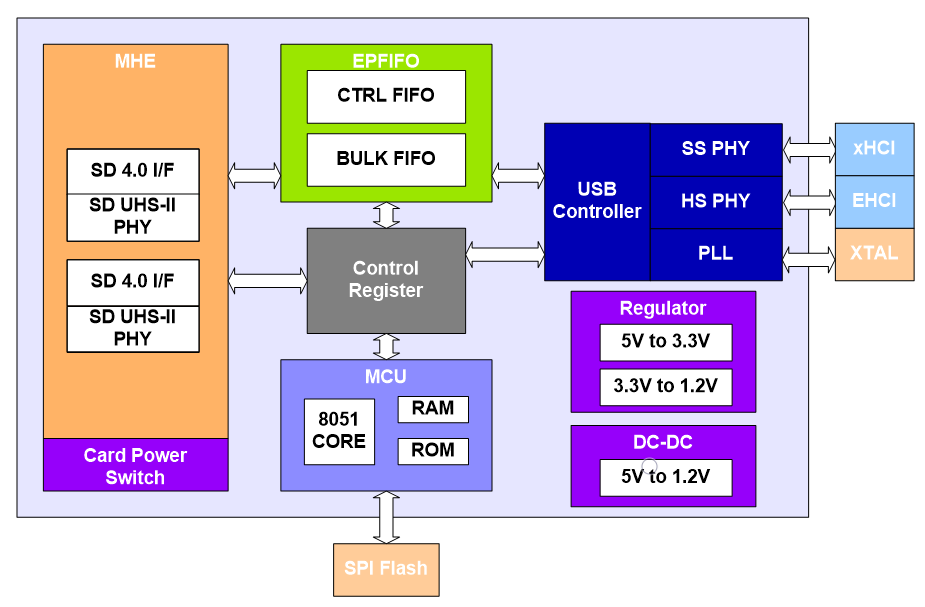

GL3231ST integrates a high speed 8051 microprocessor and a high efficiency hardware engine for the best data transfer performance between USB and various memory card interfaces. It supports Serial Peripheral Interface (SPI) for firmware upgrade to SPI Flash Memory via USB port. It integrates 5V to 3.3V and 3.3V to 1.2V regulators and power MOSFETs which can reduce system BOM cost. It also integrates 5V to 1.2V DC-DC as alternative to improve the power efficiency.
GL3231ST integrates a high speed 8051 microprocessor and a high efficiency hardware engine for the best data transfer performance between USB and various memory card interfaces. It supports Serial Peripheral Interface (SPI) for firmware upgrade to SPI Flash Memory via USB port. It integrates 5V to 3.3V and 3.3V to 1.2V regulators and power MOSFETs which can reduce system BOM cost. It also integrates 5V to 1.2V DC-DC as alternative to improve the power efficiency.
-
USB specification compliance
-
Comply with Universal Serial Bus 3.1 Specification rev. 1.0 (USB 3.2 Gen 1)
-
Comply with Universal Serial Bus Specification rev. 2.0 (USB 2.0)
-
Comply with USB Mass Storage Class Specification rev. 1.0
-
Support USB Mass Storage Class Bulk-Only Transport (BOT)
-
Support 1 device address and up to 3 endpoints: Control (0) / Bulk Data Read In (1) / Bulk Data Write Out (2)
-
Support 5 Gbps SuperSpeed, 480 Mbps high-speed, and 12 Mbps full-speed transfer rates
-
-
Integrated USB building blocks
-
USB2.0 transceiver macrocell (UTM), Serial Interface Engine (SIE), embedded Power-On Reset (POR)
-
-
Embedded high speed 8051 micro-controller
-
High efficient DMA hardware engine improves transfer rate between USB and flash card interfaces
-
Support Secure DigitalTM v1.0/ v1.1/ v2.0/ SDHC/ SDXC/ SDUC (Capacity up to 128TB)
-
Support Secure DigitalTM v3.01 UHS-I (Ultra High Speed): SDR12/ SDR25/ SDR50/ DDR50/ SDR104
-
Support Secure DigitalTM v4.0 UHS-II: Full Duplex Mode and Half Duplex Mode
-
Support Secure DigitalTM v5.0
-
Support DDR200 speed mode to enhance the UHS-I performance
-
Support MultiMediaCardTM (MMC)
-
MMC specification v3.x/ v4.0/ v4.1/ v4.2
-
x1/ x4 bit data bus
-
-
Support HUAWEI Nano Memory Card
-
Support Serial Peripheral Interface (SPI) for firmware upgrade to SPI Flash Memory via USB interface
-
On-chip power MOSFETs for all flash media cards power source
-
On-chip 5V to 3.3V and 3.3V to 1.2V regulator
-
On-chip 5V to 1.2V DC-DC to improve power efficiency.
-
Support 5V power input or 3.3V power input
-
Support USB 2.0 LPM (Link Power Management)
-
Support USB 3.1 Gen 1 LTM (Latency Tolerance Messaging)
-
Support USB 3.1 Gen 1 U1/U2/U3 low power link state
-
Support dual SD4.0 interfaces with UHS-I: SDR12/ SDR25/ SDR50/ DDR50/ SDR104 bus mode and UHS-II: FD156/HD312
-
Support programmable SSC (Spread Spectrum Clocking), clock rate for SD memory card interface
-
Support programmable LED behavior, Read Only option for specific application
-
Support Over-Current protection mechanism
-
Available in QFN64 pin package (8x8mm) for 2 LUNs SD
