GL9960
20Gbps, 4-Channel 1:2 Mux/DeMux

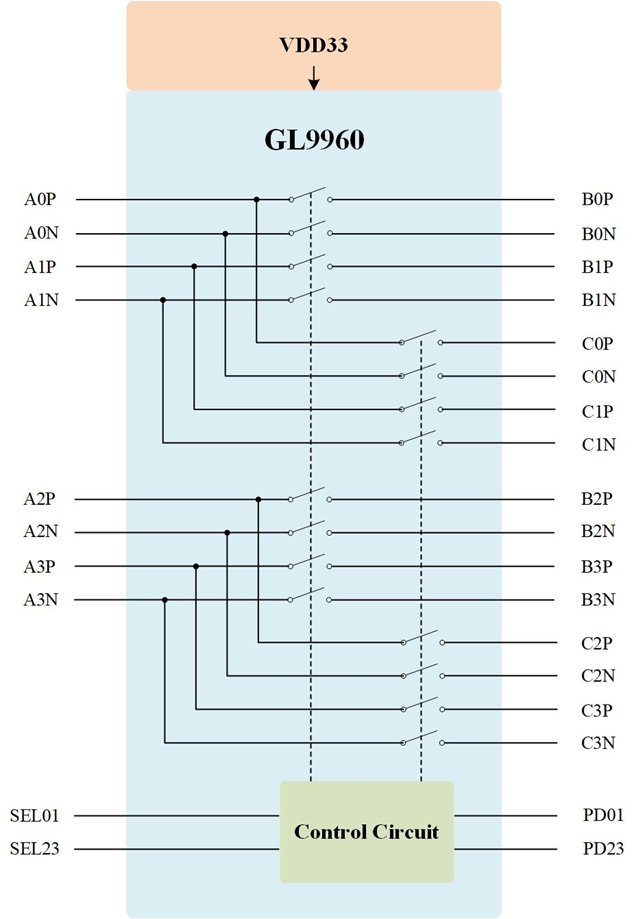

Genesys GL9960 is a 4-channel high-speed bi-directional MUX/DeMUX switch that can switch multiple signal types up to 20 Gbps data rates. It is compatible with multiple interface standards, such as PCIe Gen 4, USB3.2 and other high-speed data protocols with a differential amplitude of <1200mVpp and a common-mode voltage of < 1.1V. The target application might be Desktop, PC, Notebook, workstation and data center servers.
All available packages for GL9960 are listed in the following table.
All available packages for GL9960 are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
GL9960
|
QFN 42
|
|
GL9960S
|
QFN 40
|
-
4 differential channel of bi-directional Mux/DeMux
-
Compatible with multiple interface standards
-
Operating up to 20Gbps including PCI Express Gen 4 and USB3.2/ 3.1/ 3.0
-
Wide -3dB bandwidth of over 13GHz
-
Excellent dynamic characteristics
-
Low insertion loss: -1.11dB@5GHz, -1.67dB@8GHz, -2.18dB@10GHz, -3.03dB@13GHz
-
Return loss: -30.19dB@5GHz, -23.47dB@8GHz, -26.16dB@10GHz, -15.78dB@13GHz
-
Off isolation: -24.47dB@5GHz, -20.41dB@8GHz, -18.71dB@10GHz, -17.71dB@13GHz
-
Inter-channel crosstalk: -36dB@5GHz, -33dB@8GHz, -30dB@10GHz, -30dB@13GHz
-
-
Low intra-pair skew
-
Bit-to-bit: 3ps (typ)
-
Channel-to-channel: 10ps (typ)
-
-
Maximum differential input swing: 1200mVpp
-
Common-mode voltage range 0V ~ 1.4V
-
Low power consumption
-
Active mode: 300uA (typ)
-
Power down mode: 150uA (typ)
-
-
VDD33 supply voltage 3.3V ±10%
-
Operation temperature range: 0°C to 70°C
-
HBM ESD level: 4kV
-
Applications
-
Desktop and notebook PC
-
Server
-
IPC
-
