BW9800
USB Type-C CC controller with VBUS Power Switch

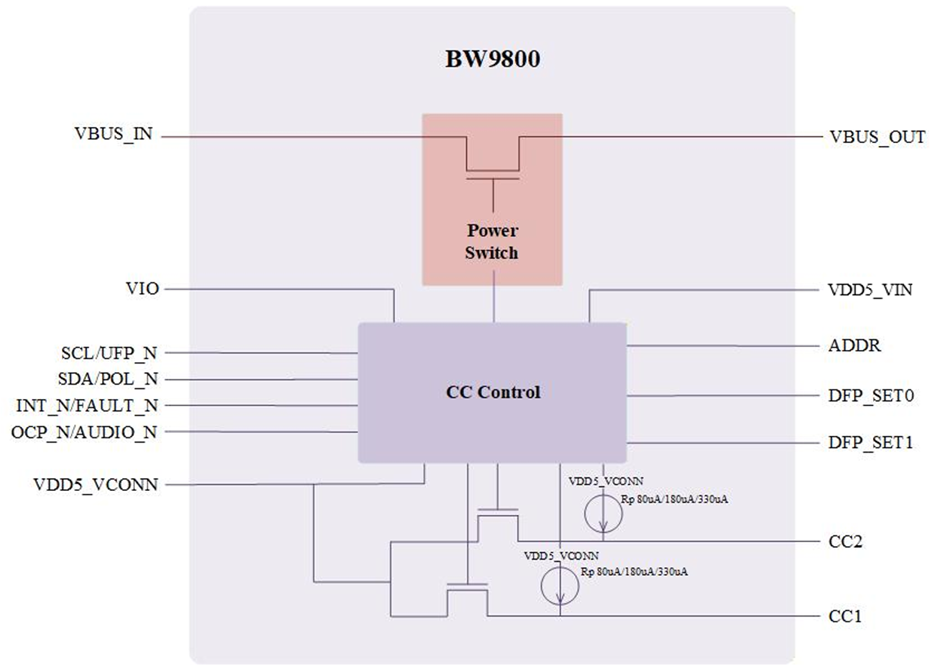

BW9800 is a USB Type-C DFP (Downstream Facing Port) controller and 5V power switch for VBUS and VCONN power. Support USB Type-C current for Default (0.9A)/1.5A/3A current capability of VBUS charging. It is single port structure and use SMBUS interface or Pin Mode controlled by MODE pin selection.
All available packages for BW9800 are listed in the following table.
All available packages for BW9800 are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
BW9800
|
QFN 20
|
-
CC Attach/Detach function with DFP controller
-
0.9A/1.5A/3A USB Type-C current capability
-
5V *3A power switch of VBUS
-
VCONN power switch (300 mA)
-
With OTP function @ 155 degree (Junction Temp.)
-
Short circuits protection for VBUS_IN and VDD5_VCONN pin
-
Support Intel PD to PCH command and registers
-
Support AMD system over pin mode operation
-
Supply voltage: 5V
BW9800
