BW9963
10Gbps, 2-Channel 1:2 Mux with Integrated USB Type-C Detector
Genesys BW9963 is a 2-channel high-speed bi-directional MUX with USB Type-C DFP (Downstream Facing Port) controller.

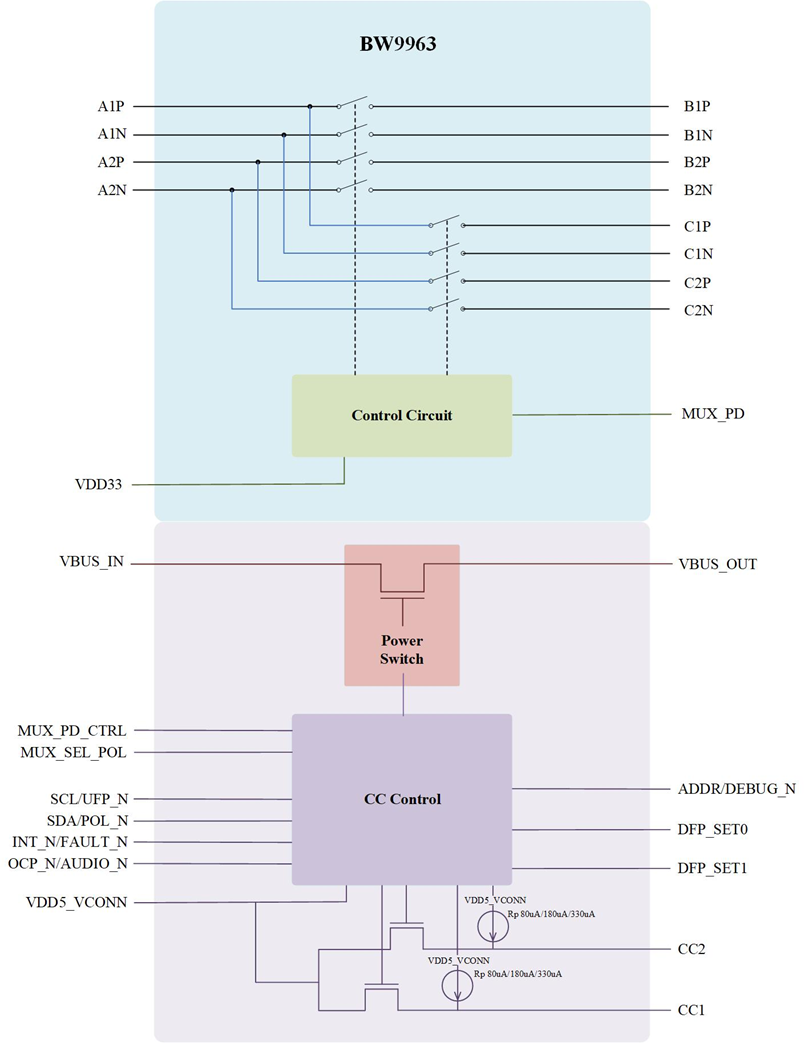

The device includes two main function blocks:
The device includes two main function blocks:
1. 10Gbps, 2-Channel 1:2 Mux
2. USB Type-C DFP (Downstream Facing Port) controller
MUX
It is compatible USB3.2 protocol with a differential amplitude of <1200mVpp and a common-mode voltage of < 1.1V. The target application might be Desktop, Notebook, Monitor, workstation and data center servers.
USB Type-C DFP Controller with 15W Power Switch
USB Type-C DFP (Downstream Facing Port) controller and 5V power switch for VBUS and VCONN power. Support USB Type-C current for Default (0.9A)/1.5A/3A current capability of VBUS charging. It is a 1-port structure and use I2C interface or Pin Mode controlled by MODE pin selection.
All available packages for BW9963 are listed in the following table.
It is compatible USB3.2 protocol with a differential amplitude of <1200mVpp and a common-mode voltage of < 1.1V. The target application might be Desktop, Notebook, Monitor, workstation and data center servers.
USB Type-C DFP Controller with 15W Power Switch
USB Type-C DFP (Downstream Facing Port) controller and 5V power switch for VBUS and VCONN power. Support USB Type-C current for Default (0.9A)/1.5A/3A current capability of VBUS charging. It is a 1-port structure and use I2C interface or Pin Mode controlled by MODE pin selection.
All available packages for BW9963 are listed in the following table.
|
Product Series
|
Package Type
|
|---|---|
|
BW9963
|
QFN 40
|
MUX
-
2 differential channel of bi-directional Mux
-
Compatible with USB3.2/ 3.1/ 3.0
-
Wide -3dB bandwidth of over 13GHz
-
Excellent dynamic characteristics
-
Low insertion loss: -1.11dB@5GHz
-
Return loss: -30.19dB@5GHz
-
Off isolation: -24.47dB@5GHz
-
Inter-channel crosstalk: -36dB@5GHz
-
-
Low intra-pair skew
-
Bit-to-bit: 3ps (typ)
-
Channel-to-channel: 10ps (typ)
-
-
Maximum differential input swing: 1200mVpp
-
Common-mode voltage range 0V ~ 1.4V
-
Supply voltage: 3.3V
USB Type-C DFP Controller with 15W Power Switch
-
CC Attach/Detach function with DFP controller
-
0.9A/1.5A/3A USB Type-C current capability
-
5V *3A power switch of VBUS
-
VCONN power switch (300 mA)
-
With OTP function @ 155 ℃
-
VBUS/VCONN power switch supports over-current protection (OCP), short-circuit protection (SCP), and under-voltage lockout (UVLO)
-
Supply voltage: 5V
