GL3008 is a high-performance USB 3.2 Gen1 compliant controller for USB camera application with the Genesys Logic’s highly recognized self-developed USB super-speed and high-speed transceiver. GL3008 provides video performance up to 384 Mega bytes per second. GL3008 implements USB3.2 Isochronous mode which provides guaranteed bandwidth for users to get smooth video experience even when other high bandwidth devices are running concurrently on the same USB3.2 Gen1 Host.
It is also a high-performance and feature-rich fisheye image processor optimized for a wide range of image sensors and fisheye lenses, supporting powerful fisheye correction methods including customized correction, panorama dewarping and perspective dewarping, which achieve rich dewarping modes to enhance the wide- angle visual perception. In addition, the GL3008 embeds hardware image signal processor (ISP), wide dynamic range (WDR), OSD function and support input CMOS Sensor up to 9M, providing real-time and superior visibility technology for wide-angle camera application.

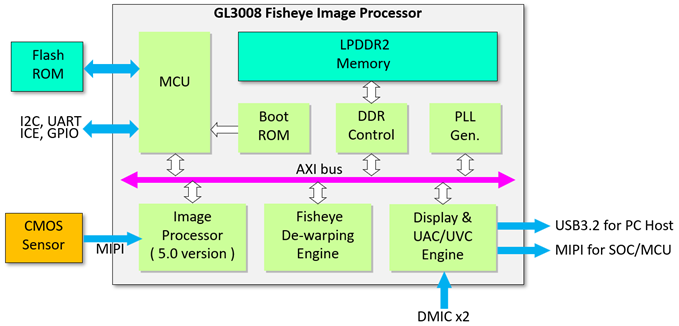

GL3008 is a high-end fisheye image processor for wide-angle camera application. The proprietary dewarping engine implements various method of fisheye corrections. The superior image signal processing (ISP) offers true color processing capabilities. Display engine provides rich dewarping functions to meet the diversity of wide-angle scenario and enhances human visual experience. The detail features of the GL3008 are described below:
- Compliant with USB 3.2 Gen 1 Superspeed
- Compliant with USB 2.0 high-speed and full-speed
- Compliant with USB Video Class 1.1 & UAC 1.0
- Support USB 2.0 and USB3.2 Gen1 configurable isochronous video/audio pipe
- Support USB Type-C CC pin detection
1.2 Fisheye Correction Modes
- Customized Fisheye Correction
- Spherical Panorama Dewarping
- Perspective Projection Dewarping
- Three views Stitching
- Panorama View
- Single View
- Bird View
- Corner Views
- Multi-Views
- 360° view
- ePTZ
- Rotation
- Mirror/Flip
- 8-Layer Graphic OSD
- Dynamic Overlay
- Font OSD
- Bad Pixel Correction
- Gr/Gb Green Balance
- Black Level Compensation
- Lens Shading Correction
- 2D & 3D Denoise
- Edge Enhancement
- Bayer Patten Interpolation (Color Interpolation)
- Auto White-Balance
- Auto Exposure
- Auto Focus
- Color Correction Matrix
- Gamma
- YUV Processing (for brightness, contrast, hue, gain, and offset processing)
- Wide Dynamic Range (WDR)
- False Color Suppression
1.6 Inputs/Outputs, Video Formats
- Input interface: 4-lane MIPI
- Output interface: 4-lane MIPI or USB 3.2
- Input resolution up to 12M @30fps
- Input data format:
- 8/10/12-bit Bayer RAW
- Output resolution up to MJPEG 8M @30fps
- Output data format:
- MIPI 8/10/12-bit Bayer RAW
- MIPI 8/10-bit YUV 4:2:2
- USB YUY2 and MJPEG
- Link with I2S/DMIC audio devices, up to 48/96Khz, 2-channels
- Mixed-signal D-PHY mixed-signal hard-macro-HS/LS Transmitter and LS/HS Receiver solution
- Designed to MIPI® v1.0 Specifications
- 1.2GHz maximum data transfer rate per lane
- Expandable to support 4 data lanes, providing up to 4.8Gbps transfer rate
- Embedded ESD, boundary scan support logic
- SPI Master bus interface
- UART, GPIOs
- I2C Master/Slave
- QFN128 (14x14mm)
- Industrial Grade: -40°C to 85°C
